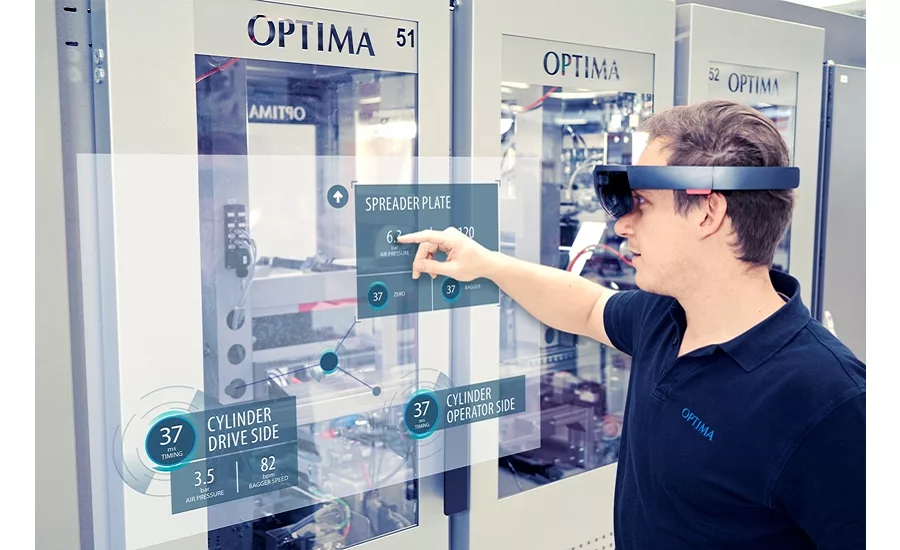

Soon customers will have the choice: Which HMI hardware to work with? How should the HMI be adapted to the specific needs of the user? We have in store a radical technical change in hardware and functionality that will increase the efficiency in system operation. Thanks to smartphones and tablets, today's users are accustomed to intuitive and clearly arranged interfaces for operating devices. New HMIs take up these developments, but are adapted to the industrial environment and expanded with essential features.

Paper hygiene packaging: Pioneering work with "Project ZERO"

Optima (optima-packaging.com) is presenting a genuine pioneering feat with its "Project ZERO". The technology of the future is ringing in a new era of production flexibility. This machine perfectly adapts to the requirements with optimized format change time, a new stacker for feminine care products and a platform with a completely modular design. The operator specifies designs and data, the machine handles the rest. The different packagings are produced inline. Furthermore, new sensor technology leads to process stability that is once again significantly increased. Project ZERO is forward-looking.

Fast market launch for coffee capsules and other solutions

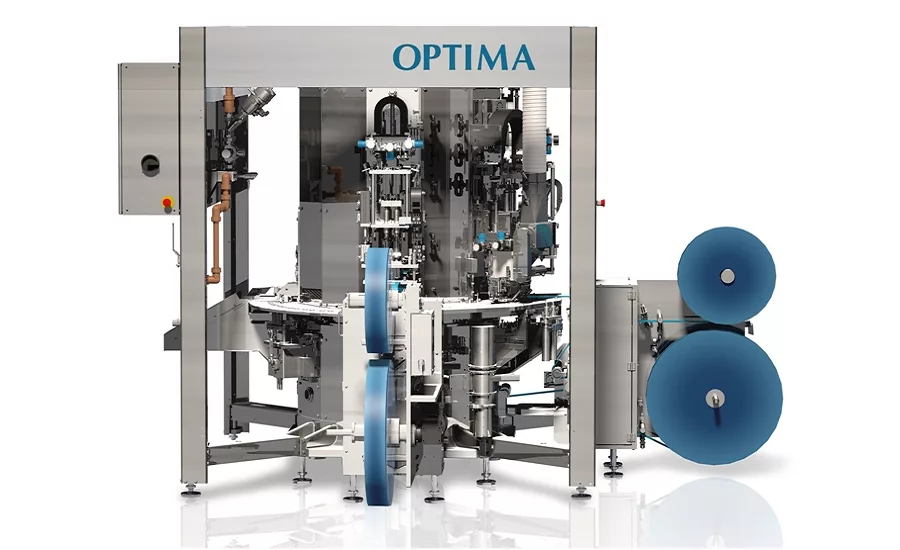

Optima Consumer offers everything from entry-level solutions to high-end machines and turnkey solutions, also for coffee capsules. The new OPTIMA CFR is compact, efficient and flexible. This modular rotary machine is easy to clean and to use. Its output is up to 220 capsules/min. This enables easy dispensing of instant products or tea. The crucial advantage of the OPTIMA CFR is its time to market. It is ready for delivery on short notice.

Turnkey solutions for coffee capsules or coffee pods: The OPTIMA CFL 2-8 dosing and packaging system manufactures both, capsules and pods from fleece paper. Its output is up to 800 serving-size packages/min. Up to 75 units of sales packaging per minute are produced.

Hygiene for cosmetic two-phase products

The shown OPTIMA Moduline is equipped with a Laminar Flow in order to comply with the high hygienic requirements in the cosmetic industry. The two-phase dosing module fills the liquid and non-miscible phases of the product in separate containers. In addition, the 6-headed filling unit can be operated in a conventional manner. In combination with the precise torque capper, an output of up to 120 pcs/min. can be reached.

Market entry made easy

The OPTIMA FM1 for liquid to pasty products is ideal for the food, cosmetics and chemical industries. Two different pump systems ensure a wide range of applications, high filling accuracy and very gentle product handling. The OPTIMA FM1 processes a filling volume capacity of up to 1,000 ml, at a maximum output of 90 containers/min. The OPTIMA CM1 pairs perfectly with the FM1 in terms of closing technology, with the flexibility to be configured or expanded for a range of closure types. Installation, format change and operation via the HMI is quick and easy. The entry-level machines are built in serial production, to minimize lead-time while maintaining the highest quality standards.

High performance and variety for the pharmaceutical industry

The Optima pharma INOVA VFVM 18000 is a machine designed for high-performance processing of vials and infusion bottles. Up to 24,000 objects per hour are filled and sealed. The system features a broad format range from 2R to 500 IL (fill volume of 0.1 to 500 ml). Specific dosing technologies are used depending on the product features, including disposable systems. Optionally, the INOVA VFVM 18000 can be used with washing machines, sterilization tunnels, isolators and in combination with other containment and loading systems, as well as freeze-drying systems.

MultiUse – the concept for more flexibility

The modular, flexible INOVA SV125 machine system can be operated with three different filling systems and can process three different container types: nested syringes, carpules and vials. The INOVA SV is suitable for the range from pilot testing to medium outputs. A maximum output of 18,000 containers/hour is achieved via ten filling stations. The dosing range is 0.1 to 50 ml. Numerous supplementary modules, functions and containment technologies are available, including isolators.

Modular and scalable system from OPTIMA life science

Ideal for new products and business areas: the OPTIMA TDC 125 from Optima Life Science can produce all current transdermal patches (TDS) and oral film strips (ODF) at a laboratory scale or in small production batches. All the production and packaging processes can be validated before being transferred to larger production machines if required. The scalable machine is suitable for manufacturing product samples for clinical tests, for market launch and even for subsequent production. In its simplest form, the system features intermittent operation. Alternatively, the system can be operated continuously with a high output for production of larger volumes.

With the OPTIMA ImmuCoat® system, Optima Life Science shows a modular and scalable system for automatic coating of micro-titer plates for the manufacture of ELISA test-kits. The special feature: All basic modules can be combined as desired. Equipped with a “plug and play” architecture, the basic modules can be connected together in the simplest way. Almost any product batches can be managed simultaneously and processed without the risk of mix-ups.

Optima will be presenting innovations at Interpack 2017 in Dusseldorf, Germany (May 4-10, 2017) under the motto "Mission Total Care." The company will also feature new machine solutions, turnkey systems and "Project ZERO." (Hall 16, Booth No. F25, F26)
