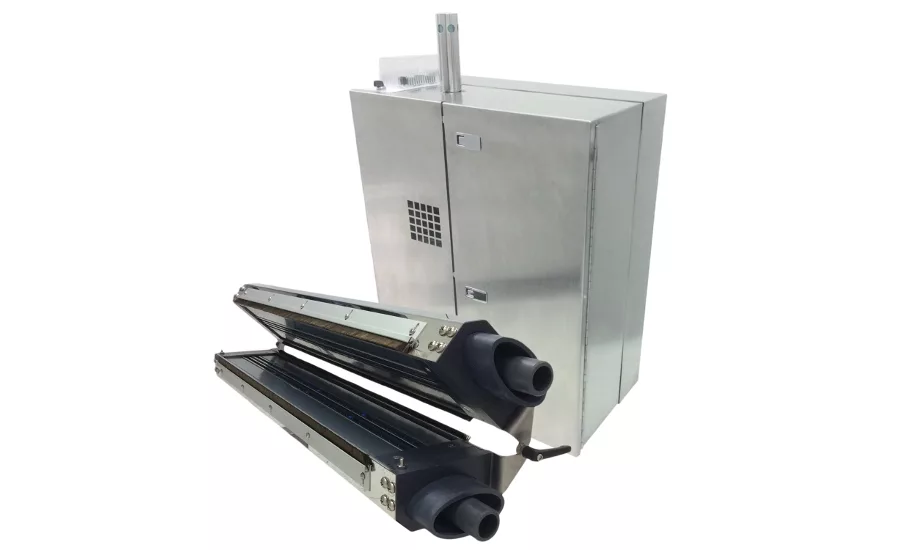

Simco-Ion has introduced the V-Force 30, an industrial vacuum cleaning system for narrow web machines. It combines the power of static neutralization with high vacuum, high volume and high velocity, allowing for ultimate cleaning. The complete system includes a non-contact cleaning hood with active static neutralizing bars, a ducting kit and a self-contained air control system. It can be easily installed onto the open web in most narrow web presses and machinery, including those running thin films.

The V-Force 30’s compact clam-shell hood design incorporates an optimized air management chamber that balances a high velocity air agitation curtain with dual vacuum slots, providing the highest efficiency clean. The hood also incorporates shock-less static bars to quickly neutralize and break the bond between charged particulates and the running web at up to 2,000 feet per minute.

The air control system is an all-in-one blow-off, vacuum and collector support cabinet that connects to the hood through an integrated hose design. The ACS’s stainless steel enclosure incorporates enhanced acoustic isolation resulting in extremely quiet operation. It also incorporates a non-regenerative blower design with dedicated turbines and a filtered fresh air intake providing powerful performance without the use of costly compressed air. The quad turbine vacuum source is strategically designed so that there is no degradation of vacuum suction as each filter accumulates particles.



Simco-Ion
(215) 822-6401; www.simco-ion.com
