Any food recall incident is a crisis situation that requires quick action to mitigate any longstanding financial and reputational damage. Metal detection specialist Fortress Technology examines the different factors that can make food operators vulnerable to a recall—even with inspection equipment in place.

The temptation to cut corners on equipment and the connection between compromising on food safety standards was recently highlighted by global insurance broker Lockton International.

Virtually all (98 percent) of the manufacturers surveyed for the Lockton Food & Beverage Report agreed that continued price pressures would influence the final product on the retail shelves, with 42 percent believing that cost cutting is to blame for the recent rise in the number of recalls.

Because of retail pricing pressures, survey participants suggest that safety standards are being compromised. The study also points to a significant increase in food recalls by the U.S. Department of Agriculture and the Food and Drug Administration, with the number doubling in the last 10 years and a sharp rise in those with physical contaminants, including metal. Lockton’s Food and Beverage Product Recall Risk Tracker found that food contamination linked to choking hazards were the cause of 22 percent of food and drink recalls over the past six years.

It implies that short-term thrift with equipment may have an adverse effect on food safety, putting a business and brand reputation in jeopardy. Understanding how to optimize metal detection systems forms a critical part of the planning for a recall process and is good business practice.

It can happen to anyone

Most food suppliers that face a recall will almost certainly have product inspection equipment in place, so what causes a metal contaminant to slip through the HACCP safety net? The answer is no system is entirely infallible.

Quality assurance often runs deeper than the obvious. Rather than considering the “if” it can be prudent to think instead about the ‘when’. To mitigate future contaminant risks means you are not looking for patterns but future potential holes in the security chain. From a practical perspective, food processing inspection risks should be reviewed every 12 months as part of a defined HACCP assessment.

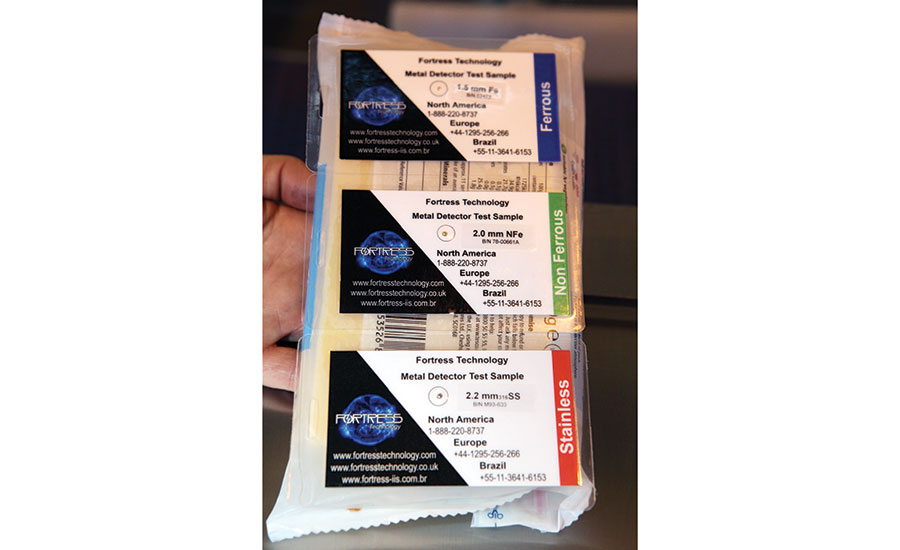

Test spheres are the standard technique for measuring the sensitivity of food inspection metal detectors.

Run mock recalls

Don’t wait for a crisis to hit before developing your recall response. It can be advisable to run several mock rehearsals for different product scenarios. Make sure you involve everyone who would be connected to a recall, from quality assurance managers to production line operators, customer service personnel to marketing. Testing your process regularly in this way helps to clarify everyone’s role. Have a contingency team too, to cover holidays and should the recall hit outside of usual operating hours.

Know your metals

First, there’s the widespread use of stainless steels in the food industry. These are more difficult to detect than ferrous metals such as iron and steel, or non-ferrous metals such as copper or zinc. That’s because metal detectors work by monitoring disturbances in an electromagnetic field, caused by magnetic and conductive characteristics of material passing through. Ferrous metals are both magnetic and good electrical conductors so they’re relatively easy to detect. Non-ferrous metals aren’t magnetic but they’re good conductors.

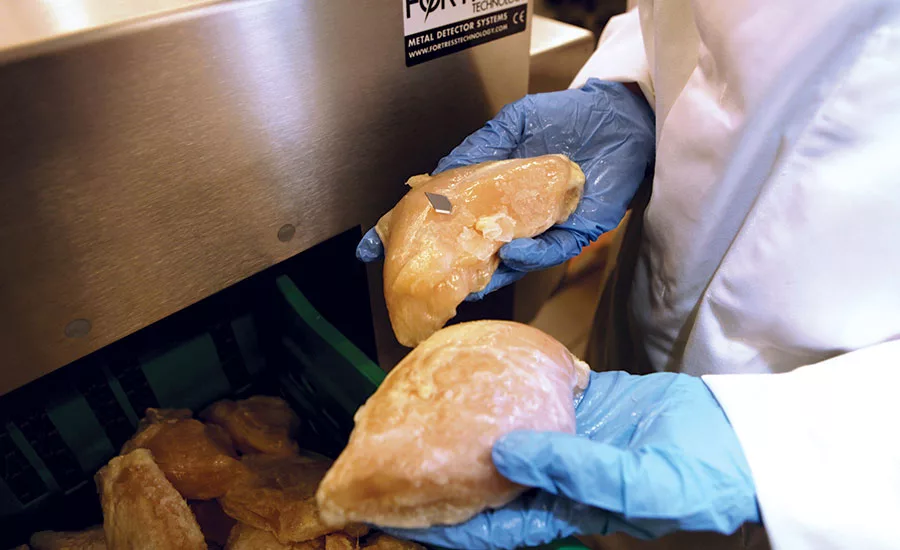

Stainless steel, specifically the 300 series, is non-magnetic and also a poor electrical conductor compared to other metal types. These characteristics make stainless steel the most difficult metal type to detect. In practice this means that a sphere of stainless steel hidden in a dry product typically needs to be 50 percent larger than a ferrous sphere to generate similar signal strength. That disparity can rise from 200 to 300 percent when inspecting wet product with conductive characteristics.

Consider product flow and shape

Food products come in all shapes, sizes and density. What’s more, products don’t always travel consistently in the same direction when passing through the metal detector aperture. Since size, shape, orientation and position of metal contaminants cannot be controlled, operating a metal detector at the highest possible sensitivity is generally viewed as the best method to detect the smallest possible contaminants.

It’s equally important to remember that metal detector performance is usually measured using spheres. However, metal contamination may not be spherical, thus the signal generated by said contaminant can vary in amplitude quite drastically in some cases. The most extreme example is small diameter wire, which may be easy to detect if it presents to the detector in one orientation, but very tricky to spot if it arrives in a different (worst case) orientation. It’s therefore important to optimize the performance of the detector to cope with the worst-case scenario.

An improvement in sphere size from 3mm to 2.5mm may not sound like much but it can be the difference between success and failure when trying to spot an irregular fragment.

Test spheres are the standard technique for measuring the sensitivity of food inspection metal detectors.

Test and record

It’s vital to check that any metal detection system is fail-safe. For example, if a fault with the reject system means that a contaminant is detected but not rejected, the line should stop automatically until the situation is resolved.

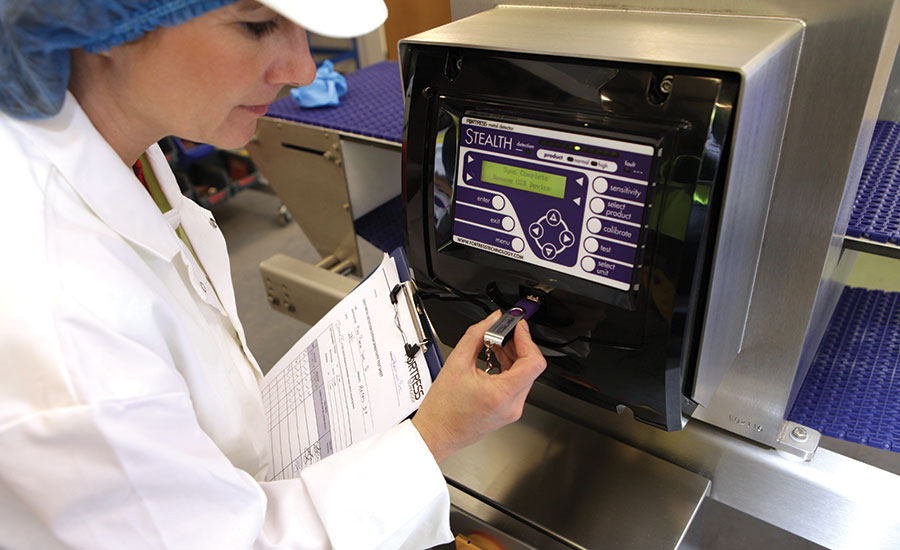

Both the detector performance and fail-safe capability should be tested regularly with results kept on record to support traceability. Major retailers will typically have their own codes of practice that specify their testing and reporting requirements, but what happens in theory can be harder to implement in practice in a busy production environment—especially if the record keeping is done manually on paper.

Some metal detector equipment manufacturers—Fortress Technology included—integrate secure, automatic logging of all such information into their systems. This is a situation where a modest investment up front can lead to savings later on by narrowing the time window during which a problem can go undetected and reducing the number of suspect products that must be discarded or recalled in case of an incident.

Size does matter

Because sensitivity is measured at the geometric center of the aperture, the ratio of the aperture to the size of the product is an essential consideration. Maximum sensitivity occurs when the belt and food item is closest to the edge of the metal detector opening, making sense that the smaller the aperture, the more capable it is of detecting the smallest possible contaminants. Users could optimize performance by using several smaller detectors positioned at critical control points throughout the process, rather than a single, big “catch-all” detector at the end of the line.

Utilizing upstream metal detection can also identify smaller contaminants, which may not be possible at the end of the line system. HACCP guidance states that critical control points (CCPs) should be located at any step where hazards can be prevented, eliminated, or reduced to acceptable levels.

Detecting any contaminant at the upstream phase means that the rejected product will be a small amount of raw material/unfinished product versus finished/packaged product. This method will also help identify possible sources of the contaminant, as the point of inspection is closer to the manufacturing process where fragments of metal may be introduced from processing equipment.

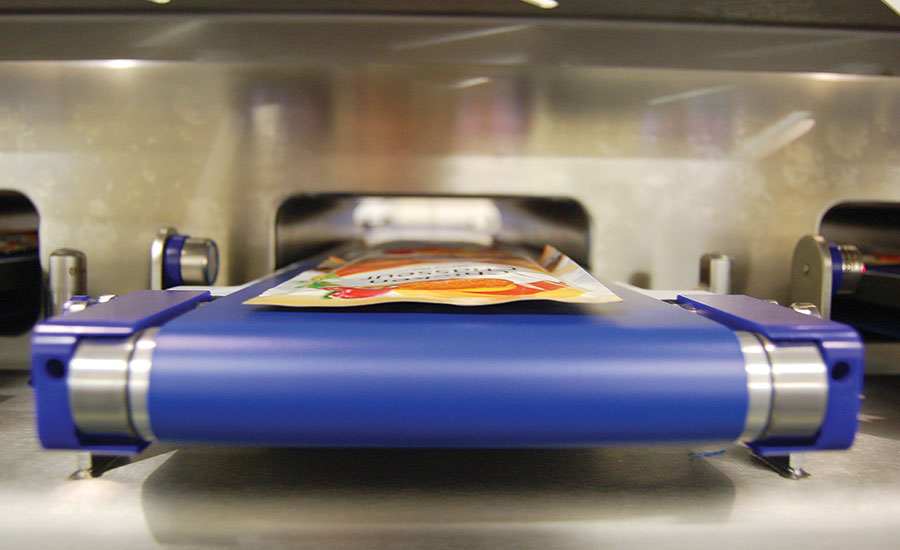

The ratio of the aperture to the size of the product is an essential consideration as sensitivity is measured at the geometric center of the aperture.

Mitigating the risks

When balancing the risks and rewards of investing in optimized metal detectors systems, many users don’t perceive them as generating value for their business beyond the need to comply with customer demands, such as retailer codes of practice. However, short-term thrift could be an expensive mistake in the longer term.

Any food manufacturer should look at this from a risk management perspective. Think of it like fire insurance. No one intends to allow metal to contaminate their food products any more than they intend to burn down their factory, but that doesn’t stop them from investing in fire protection and insurance. In the same way, investing in metal detection reduces the risk of a company’s hard-won reputation for food safety going up in flames. By weighing the cost of equipment versus the cost of a product recall, the decision to invest in good quality inspection equipment should a simple one.
